Product Details
Selling Point:
- 3 wind speeds:HI,MID,LOW
- Automatic oscillation for horizontal louver
- with timer
- Evaporative cooling and air washing
- wind modes:natural/Normal/Sleeping
- With anion to better purify the air environment
- Manual up and down for vertical louver
Product configuration:
- Size of wind wheel：Φ120x240 / a cross-flow fan
- Power of motor：DC12V ; Power:30W
- With wheels and handle
- Power cord adopts two-core wire；

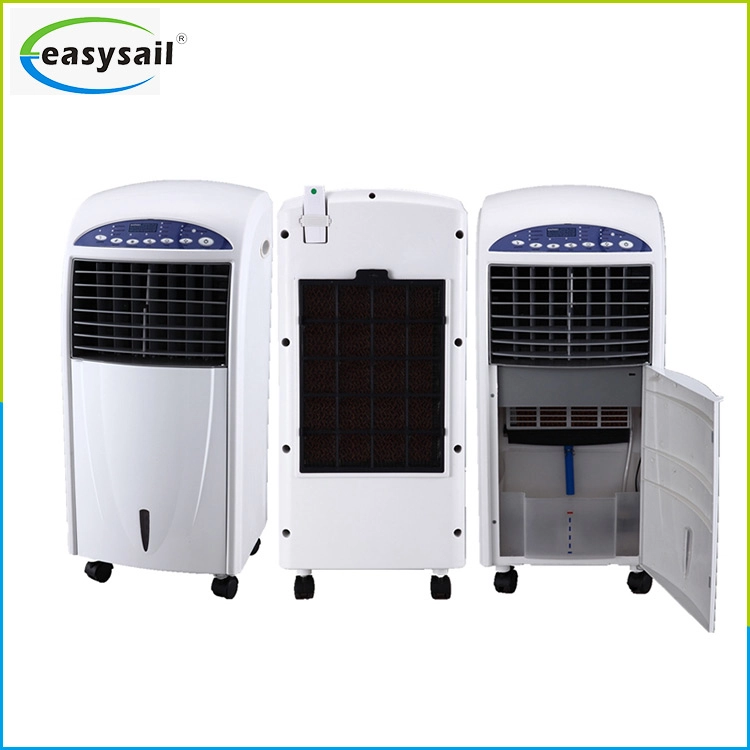

- Easy to replace honeycomb paper filter ;
- With button control and remote control；
- Independent water tank(not to be extractiive type)；
- With water pump protection system；
- With water level indicator
- With 2 pieces 5AH battery built in the fan
-
Product size:355*315*790mm
|
Rated voltage（V） |
DC12V |
Rated frequency（Hz） |
0 |
|
Rated power（W） |
35W |
Rated current（A） |
2.5A |
|
Swing angle of Left and right |
60°（automatic） |
Swing angle of up and down |
90°（Manual） |
|
temperature rise（K） |
<75K |
Noise level（dB(A）) |
63±3dB(A） |
|
Air volume（m3/H） |
550 m3/H |
Maximum wind speed（M/S） |
8.2m/S |
|
Tank capacity（L） |
8L |
Evaporation rate（mL/H） |
420mL/H |
|
Remote control distance（m） |
6m |
Speed ratio（%） |
62% |
|
Power of each speed(W) |
20W (1st speed) |
25W(2nd speed) |
30W(3rd speed) |
|
Load speed of each speed（r/min） |
700±150(1st speed) |
900±150(2nd speed) |
1100±100(3rd speed) |
