How Does an Air Circulator Fan Work? Explained Simply

How Is an Air Circulator Fan Different from a Traditional Fan?

Traditional fans are designed to deliver a direct, localized airstream toward the nearest occupant — effective for personal cooling but limited in room coverage. An air circulator fan operates on a fundamentally different principle: it generates a high-velocity, focused air jet using deep-pitch blades and precision-engineered housings, then uses the interaction of that jet with room surfaces to establish a continuous whole-room circulation loop.

The practical outcome is uniform air distribution across the entire space — eliminating thermal stratification, reducing hot and cold zones, and delivering a more energy-efficient comfort experience than localized airflow alone. Models with 360° oscillation and adjustable vertical tilt extend this effect to cover rooms of varying dimensions and layouts.

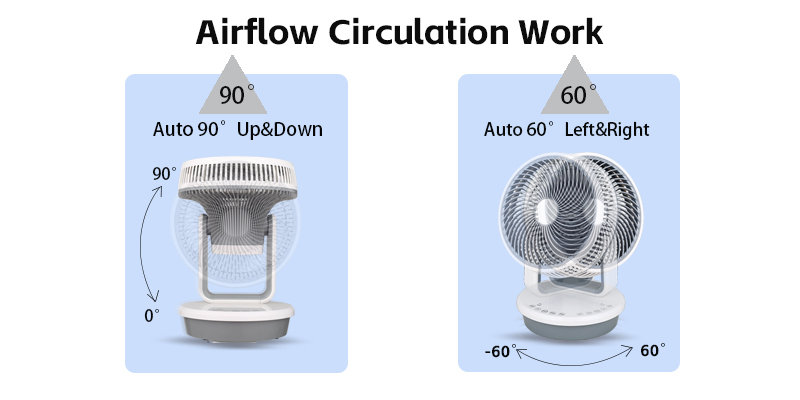

How Does the Airflow Circulation Mechanism Work?

The operating cycle of an air circulator fan follows a consistent three-stage process. First, air is drawn into the unit through the rear intake grille, where it is accelerated by the motor-driven blade assembly. Second, the angled blade geometry converts this intake into a focused, high-velocity jet directed outward. Third — and most critically — when this jet reaches a wall or ceiling surface, it rebounds and entrains surrounding ambient air, creating a vortex circulation pattern that refreshes the entire room volume rather than a single directional corridor.

This vortex flow behavior is what distinguishes air circulators from conventional fans at a technical level, and it is the reason they are specified for applications requiring even thermal distribution: server rooms, open-plan offices, retail floors, warehouses, and residential installations where HVAC distribution is uneven.

How Does It Enhance Performance Across Both Summer and Winter?

The seasonal versatility of an air circulator fan is one of its most commercially significant attributes. In summer, the unit amplifies the effective reach of conditioned air from AC vents or open windows — accelerating the distribution of cooled air across the room and reducing the time required to reach a comfortable temperature. This translates directly into reduced compressor run-time and lower cooling energy consumption.

In winter, the same circulation mechanism addresses thermal stratification — the tendency of warm air to accumulate near the ceiling while floor-level air remains cold. By directing airflow upward at low speed, an air circulator draws warm ceiling air downward into the occupied zone, improving heating efficiency without increasing thermostat settings. Models with reversible airflow modes or adjustable tilt angles allow this seasonal switching without any hardware reconfiguration.

How Energy-Efficient Is an Air Circulator Fan?

Air circulator fans are among the most energy-efficient active climate management tools available. Most units draw under 60 watts at full speed — compared to 900–3,500 watts for air conditioners and 1,000–2,000 watts for space heaters. When evaluated on an airflow-per-watt basis (CFM/W), well-engineered circulators significantly outperform both conventional fans and HVAC supplemental units.

For procurement programs with energy efficiency mandates or sustainability targets, air circulators offer a straightforward route to measurable consumption reduction — particularly when deployed alongside existing HVAC infrastructure to improve distribution efficiency rather than increase raw cooling or heating capacity.

How Quiet Is an Air Circulator Fan During Operation?

Acoustic performance is a key specification for deployments in offices, hospitality environments, healthcare facilities, and residential buildings. Modern air circulator fans address this through two primary design approaches: brushless DC (BLDC) motor technology, which eliminates the mechanical noise associated with brush-based motors, and aerodynamically optimized blade profiles that minimize turbulence-generated sound at the blade tips.

Properly engineered units operate at or below 35 dB in standard or sleep mode — acoustically comparable to a quiet library environment — while maintaining sufficient airflow for effective room circulation. When evaluating suppliers, request noise level data across all speed settings, not just at minimum speed, to accurately assess real-world operating conditions.

How Do You Choose the Right Air Circulator Fan?

For procurement teams and facility specifiers, the following criteria should drive the evaluation process:

• Oscillation range and tilt adjustment: 360° horizontal oscillation combined with vertical tilt capability ensures coverage across varied room geometries.
• Speed settings and timer function: Multiple speed steps and programmable timers allow deployment across different occupancy patterns and usage environments.
• Motor type and noise rating: Brushless DC motors provide superior acoustic performance and longer operational lifespan compared to conventional AC motors.
• Portability and form factor: Compact housings with caster wheels or carry handles support flexible deployment across multi-room or multi-zone installations.
• Reversible or bidirectional airflow: This feature enables year-round utility without additional equipment, improving total cost of ownership.
• Certifications: Confirm UL, CE, or ETL compliance as applicable to the target deployment market.

How Do You Maintain an Air Circulator Fan for Long-Term Performance?

Air circulator fans require minimal maintenance, but a consistent routine directly impacts long-term airflow performance and motor lifespan:

• Clean the front and rear intake grilles regularly to prevent airflow restriction from dust accumulation.
• Wipe or lightly vacuum the blade surfaces and outer casing — dust on blade surfaces measurably reduces airspeed output over time.
• Inspect the motor housing area for heat buildup or unusual vibration, which may indicate early motor wear.
• If the unit includes programmable timers, use intermittent scheduling during periods of lower occupancy to reduce cumulative motor hours.

These straightforward maintenance steps — typically requiring no tools or specialist knowledge — are sufficient to sustain rated performance across the product's full operational lifespan.

How to Determine If an Air Circulator Fan Is the Right Specification for Your Application

An air circulator fan is the appropriate specification when the primary requirement is whole-room air distribution, thermal stratification correction, or HVAC efficiency improvement — rather than active temperature change. It is particularly well-suited for:

• Consistent, whole-room airflow coverage in residential, commercial, or light-industrial environments
• Low-energy supplemental climate management with measurable impact on heating and cooling costs
• Quiet, installation-free deployment in noise-sensitive settings such as offices, hospitality rooms, or bedrooms
• Year-round utility without seasonal equipment changeover

For procurement teams evaluating climate management solutions for large-scale or OEM projects, air circulators represent a high-value, low-complexity addition to any indoor comfort specification — with straightforward integration into existing HVAC strategies and a strong energy-efficiency profile.
